Generators E E4500 E4500K1 A E4500-1000005-1020560 ROTOR@STATOR@PULLEY - Great Outboard, LLC.

  1. Product Lines
  2. Generators
  3. E
  4. E4500
  5. E4500K1 A E4500-1000005-1020560
  6. ROTOR@STATOR@PULLEY

WARNING: California Prop 65 Information

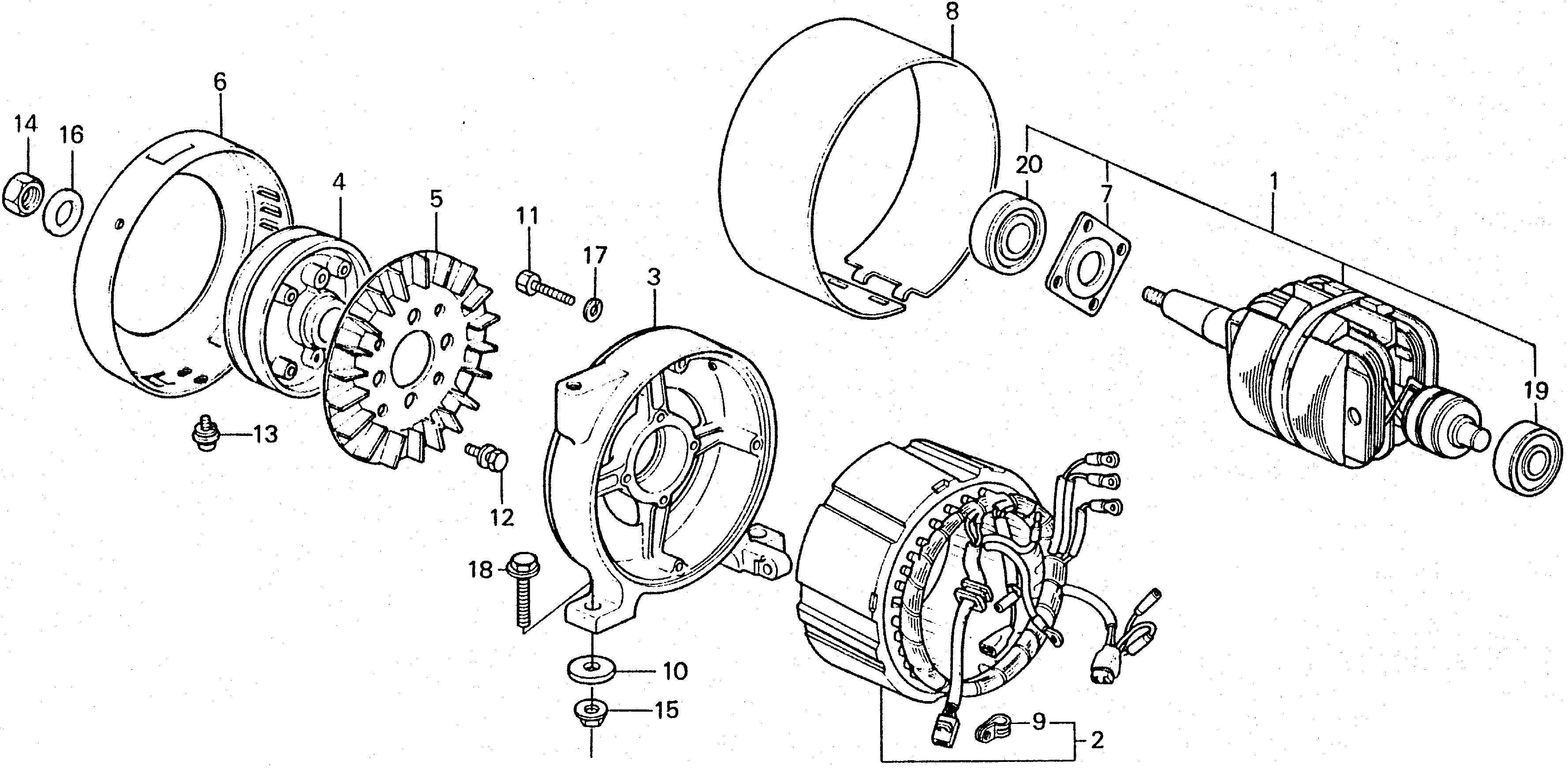

Ref No
Part Number
Description
Serial Range
Qty
Price
Ref No
1
Part Number
 31104-893-003
Description
 ROTOR
Serial Range
 1000001 - 9999999
Ref No
2
Part Number
 31105-893-682
Description
 STATOR (NOT AVAILABLE)
Serial Range
 1010617 - 9999999
Ref No
3
Part Number
 31106-880-000XC
Description
 HOUSING, FR. *NH31* (MCKINLEY WHITE)
Serial Range
 1010617 - 9999999
Ref No
3
Part Number
 31106-880-010XC
Description
 HOUSING, FR. *NH31* (MCKINLEY WHITE)
Serial Range
 1125331 - 9999999
Ref No
4
Part Number
 31111-880-000B
Description
 PULLEY, ALTERNATOR (135MM) *NH1* (BLACK)
Serial Range
 1000001 - 9999999
Ref No
5
Part Number
 31112-880-000
Description
 FAN
Serial Range
 1000001 - 9999999
Ref No
6
Part Number
 31114-880-000XC
Description
 COVER, FAN *NH31* (MCKINLEY WHITE)
Serial Range
 1000001 - 9999999
Ref No
7
Part Number
 31116-880-000
Description
 PLATE, BEARING SETTING (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
8
Part Number
 31127-893-000XC
Description
 COVER, STATOR *NH31* (MCKINLEY WHITE)
Serial Range
 1000001 - 9999999
Ref No
9
Part Number
 31191-880-000
Description
 CLIP, WIRE
Serial Range
 1000001 - 9999999
Ref No
10
Part Number
 90501-579-020
Description
 WASHER, EX. MANIFOLD
Serial Range
 1000001 - 9999999
Qty
Price
 $6.88
Ref No
11
Part Number
 92000-05032-0A
Description
 BOLT, HEX. (5X32) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
12
Part Number
 93401-06012-08
Description
 BOLT-WASHER (6X12)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.98
Ref No
12
Part Number
 93411-06012-08
Description
 BOLT-WASHER (6X12)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.98
Ref No
13
Part Number
 93893-05010-08
Description
 SCREW-WASHER (5X10)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.64
Ref No
14
Part Number
 94001-18080-0S
Description
 NUT, HEX. (18MM) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
15
Part Number
 94050-10000
Description
 NUT, FLANGE (10MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.94
Ref No
16
Part Number
 94101-18800
Description
 WASHER, FLAT (18MM) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
17
Part Number
 94111-05800
Description
 WASHER, SPRING (5MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.38
Ref No
18
Part Number
 95701-10032-00
Description
 BOLT, FLANGE (10X32)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.76
Ref No
19
Part Number
 96150-63040-10
Description
 BEARING, RADIAL BALL (6304UU)
Serial Range
 1000001 - 9999999
Qty
Price
 $23.34
Ref No
20
Part Number
 96150-63060-10
Description
 BEARING, RADIAL BALL (6306UU) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
